Stainless Steel Swing Check Valve – Wafer Pattern
To Fit PN10/16/25/40 1½”, to 3”, PN10/16/25/40 & ANSI 300 2” to 3”, PN10/16 4”, 8” & 10”, PN10/16 & ANSI 150 5” & 6”, PN10 12” to 16”. CF8M Stainless Steel Body & Disc.
Rated PN40 1½”, PN52 2” to 3”, PN16 4, 8” & 10”, PN20 5” & 6”, PN10 12” to 16”.
Temperatures:
EPDM 0°C to 130°C, NBR 0°C to 95°C, Viton 0°C to 200°C, PTFE 0°C to 200°C.
Note: EPDM Seat as standard, other options available via assembly
New to Leengate? Apply for an account
Additional Information
| Material | Stainless Steel |
|---|---|
| Fitting | Wafer |
| Size (in or mm) | 1 1/2″, 2″, 2 1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″ |
| Manufacturer | Ghibson |
| Seating Option | EPDM, NBR, PTFE, Viton |
Related Products
-
Brass Y-type Check Valve
SKU: LV2253
Brass Y-type Check Valve, Screwed BSPP, Metal Disc, Spring Assisted
-
Bronze Swing Check Valve – PN25 – NPT
SKU: LV1547
Bronze Swing Check Valve, Screwed NPT, Bronze Seat
-

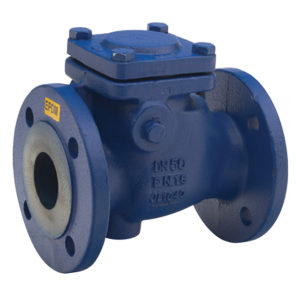

Cast Iron Check Valve – Flanged PN16 – Stainless Steel Seat
