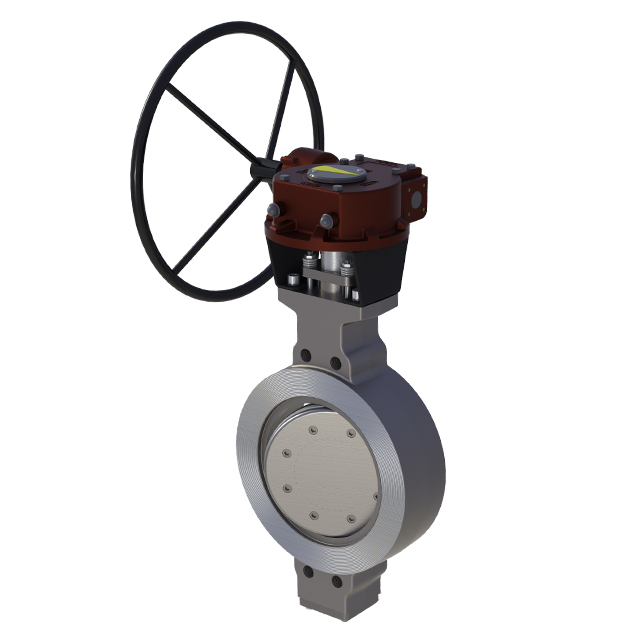

Stainless Steel High Performance Butterfly Valve – Wafer Type – Stainless Steel Disc – RPTFE Seat
Wafer to suit PN10/16/25 & ANSI 150 Flanges 2” to 10”, PN10/16 & ANSI 150 Flanges 12”, Double Offset, Stainless Steel Body, Disc & Shaft, RPTFE Seat, Lever Operated 2” to 5”, Gearbox Operated 6” to 12” Rated PN25, Temperature -60°C to 230°C. Inconel Seat Also Available -60°C to 450°C, Please Enquire
New to Leengate? Apply for an account
Additional Information
| Material | Stainless Steel |
|---|---|
| Fitting | Wafer |
| Size (in or mm) | 2″, 2 1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″ |
| Manufacturer | Ghibson |
