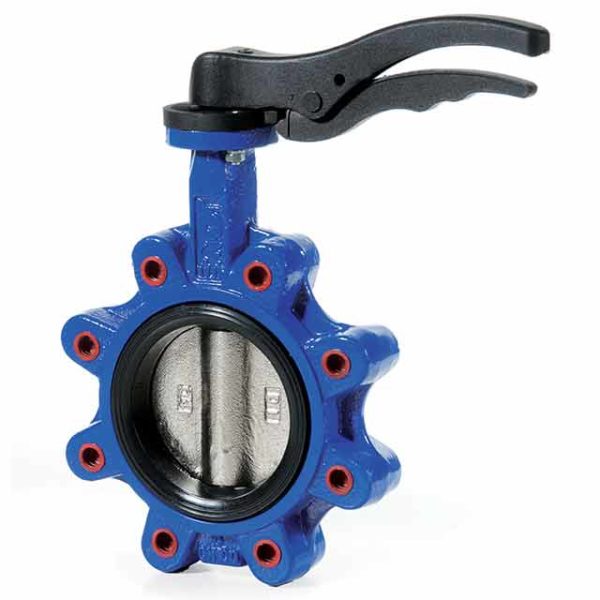

Lugged & Tapped Butterfly Valve – Stainless Steel Disc – EPDM Liner
ISO 5211 for Direct Mount, Epoxy Coated Ductile Iron Body, 316 Stainless Steel Disc, EPDM Liner, Locking Lever Operation 1” to 6”, Non-Locking Lever 8″ to 12″, Gearbox Operation 14” to 24”, Complies with 97/23/CE (PED) Directive CE 1115. WRAS Approved From 2″ to 16″.
Liquid Rating – PN16 1½” to 16”, PN10 18” to 24”.
Temperature -10°C to 120°C. (Peak 130°C)
Connection – 1” to 6” to fit PN10/16 Flanges. 8” to 24” to fit PN16 Flanges.
Other drillings available, please enquire.
Note: Gearbox operation available for all sizes, please enquire.
Enquire about this productNew to Leengate? Apply for an account
Additional information
| Weight | N/A |
|---|---|
| Material | |
| Size (in or mm) | 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24" |
| Fitting | |
| Manufacturer |
