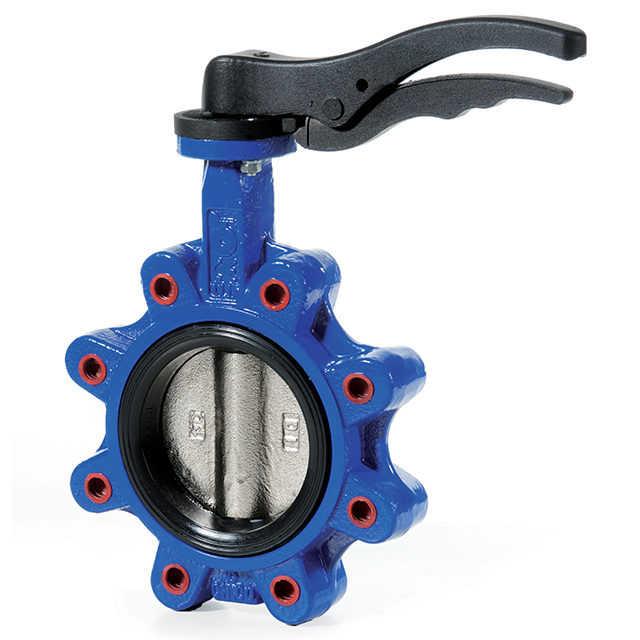

Lugged & Tapped Butterfly Valve – Aluminium Bronze Disc – NBR (Buna) Liner

ISO 5211 for Direct Mount, Epoxy Coated Ductile Iron Body, Aluminium Bronze Disc, NBR (Buna) Liner, Locking Lever Operation 1½” to 6”, Non-Locking Lever 8″ to 12″, Gearbox Operation 14” to 24”, Complies with 97/23/CE (PED) Directive CE 1115.

Liquid Rating – PN16 1½” to 16”, PN10 18” to 24”.

Inert Gas Rating – PN16 1½” to 12″, PN10 14″ to 20″, PN6 24″.

Hazardous Gas Rating – PN16 1½” to 8″, PN10 10″ to 14″.

Sizes 16″ to 24″ are not suitable for hazardous gases.

Temperature -10°C to 80°C. (Peak 90°C)

Note: Gearbox operation available for all sizes, please enquire.

Connection – 1½” to 6” to fit PN10/16 Flanges. 8” to 24” to fit PN16 Flanges.

Other drillings available, please enquire.
