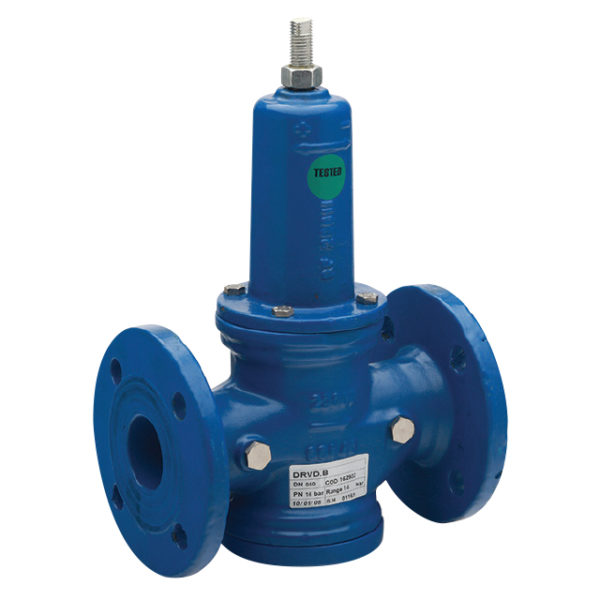

Ductile Iron Pressure Reducing Valve
Flanged PN16, GS400 Epoxy Coated Ductile Iron Body, RAL5017, Brass Internals 2” to 4”, Stainless Steel Internals 5” & 6”, NBR Seal Gasket, Epoxy Coated Steel Springs.
Maximum Inlet 16 Bar, Temperature 0°C to 80°C.
Note: 1.5 Bar to 6 Bar is Standard; 2-8 Bar and 4-12 Bar also available.
New to Leengate? Apply for an account
Additional Information
| Size (in or mm) | 2″, 2 1/2″, 3″, 4″, 5″, 6″, 8″ |
|---|---|
| Material | Ductile Iron |
| Fitting | PN16 |
