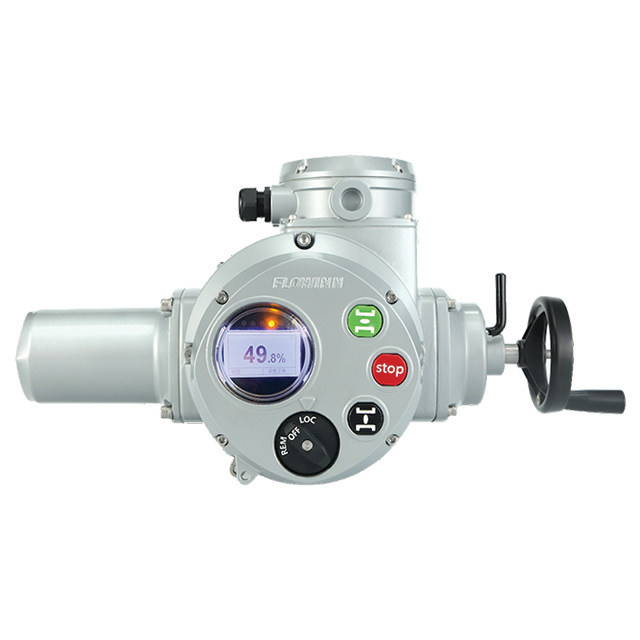

Multi-turn Aluminium Electric Actuator – Integral

IP68 Rated, Hall Switch Local Control, Non-intrusive Digital Control, Aluminium Alloy, Anti-corrosion Epoxy Powder Coating, High Strength Alloy Worm Gear, Absolute Encoder Remote Control, LCD Display. 18 to 144rpm at 50Hz, 21 to 73rpm at 60Hz, Single Phase 220V AC (+/- 10%) & Three Phase 380V AC (+/- 10%). Type A for Rising Shaft Valves, Type B for Non-rising.

Available from stock between 50Nm and 150Nm and available to order up to 900Nm.

Also available modulating, Intelligent & Modulating Intelligent.
